Industrial Sheets & Plates
Versatile Industrial Sheets & Floor Plates for Fabrication & Flooring
Amari Industries stocks and distributes prime Hot Rolled (HR), Cold Rolled Close Annealed (CRCA), Galvanized Plain (GP/GI), Chequered Floor Plates, and Profiled Color Coated Roofing Sheets. Sourced directly from integrated primary steel plants with customized cut-to-length (CTL) shearing and slitting facilities in GIDC Vapi.
Flat Rolled Products
HR Plates & Chequered
Sheets & Plates Range
Heavy structural plates, cold rolled sheets for press shops, corrosion-resistant galvanized sheets, and anti-skid chequered plates.
HR Sheets & Plates
Heavy-duty structural carbon steel plates engineered for high load-bearing baseplates, pressure vessels, boilers, and heavy fabrication.
CRCA Sheets & Coils
Cold Rolled Close Annealed steel featuring superior surface finish, close dimensional tolerance, and high deep-drawing ductility for auto panels and electrical enclosures.
Galvanized (GI / GP) Sheets
Hot-dip zinc coated steel sheets offering long-term atmospheric rust protection, uniform spangle patterns, and excellent roll-forming properties for HVAC ducts.

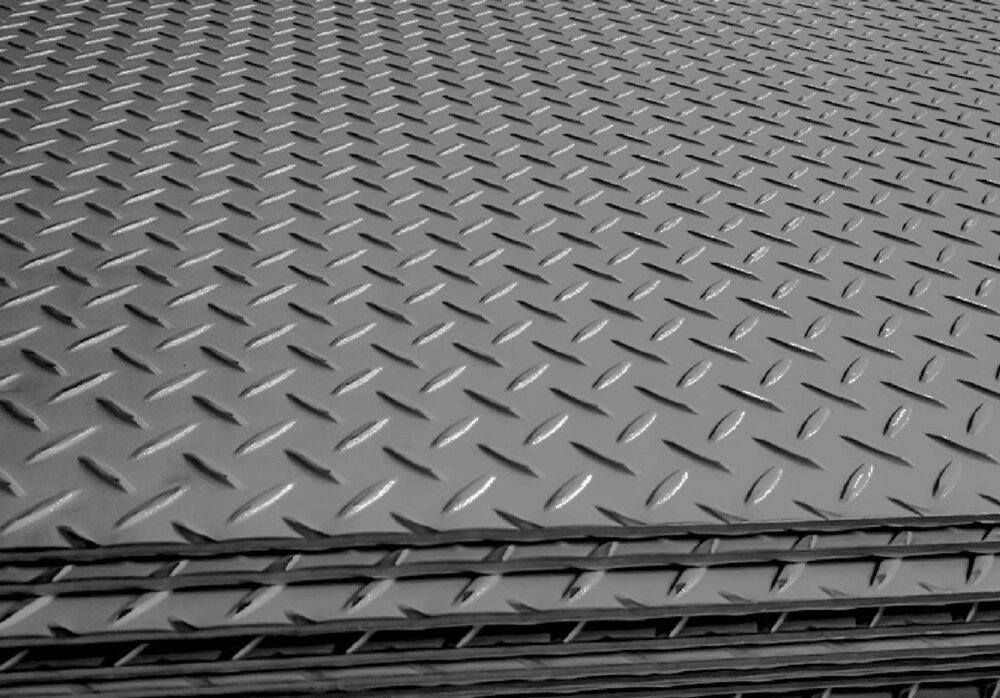

Chequered Floor Plates
Raised tear-drop pattern hot rolled floor plates engineered for anti-skid walkway surfaces, staircase treads, factory mezzanine platforms, and bus body flooring.
Profiled Roofing Sheets
Color-coated prepainted Galvalume (PPGL) and galvanized corrugated sheets for industrial warehouses, PEB roofing, and shed enclosures.
Custom Cut-to-Length (CTL)
In-house mechanical shearing and uncoiling at our Vapi yard to provide customized length blanks, minimizing site wastage and fabrication lead times.
Authorized Mill Makes & Origin
All flat sheets and plates are supplied with authentic mill test certificates matching embossed heat numbers.
Technical Standards & Dimension Matrix
Verified mechanical properties and dimension standards according to Indian and international steel codes.
| Product Type | Standard Grade | Thickness Range | Standard Sizes (W x L) | Yield / Tensile | BIS Standard |
|---|---|---|---|---|---|
| HR Sheets & Plates | IS 2062 E250 / E350 | 1.6mm – 63mm | 1250x2500, 1500x6000, 2000x8000 mm | 250 MPa / 410 MPa | IS 2062:2011 |
| CRCA Sheets & Coils | IS 513 D / DD / EDD | 0.5mm – 3.0mm | 900x2500, 1000x2500, 1250x2500 mm | Deep Drawing Grade | IS 513:2008 |
| GI / GP Plain Sheets | IS 277 Class 3/4 | 0.4mm – 2.5mm | 900x2500, 1000x2500, 1220x2440 mm | 120 - 275 GSM Zinc | IS 277:2018 |
| Chequered Floor Plates | IS 3502 / IS 2062 | 3.0mm – 10.0mm | 1250x2500, 1500x6000 mm | High Anti-Slip Grip | IS 3502:2009 |
End-Use Industrial Applications
Serving manufacturing units, chemical plants, HVAC contractors, and body builders across Gujarat.

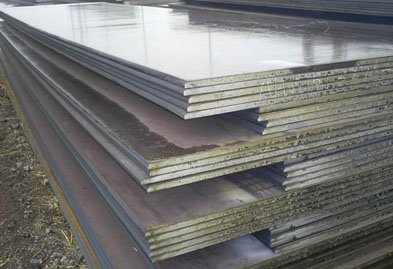

Boilers & Pressure Vessels
Certified boiler-quality HR plates designed to endure elevated internal pressure, steam temperatures, and structural stress.
Factory Flooring & Walkways
Tear-drop chequered plates providing heavy industrial grip for factory mezzanine floors, ramps, staircase treads, and ship decks.
Industrial HVAC & Ducting
Corrosion-resistant galvanized plain (GI) sheets for air conditioning ducts, exhaust blowers, cable trays, and agricultural silos.
Automotive & Truck Bodies
Deep-drawing CRCA sheets and high-strength HR plates for commercial vehicle chassis, fuel tanks, tipper trailers, and containers.
Chemical & Fuel Tanks
Welding-optimized structural plates for atmospheric storage tanks, bulk chemical reservoirs, and water treatment vessels.
PEB Roofing & Siding
Pre-painted Galvalume profiled sheets designed for weatherproof cladding of factories, logistic godowns, and industrial sheds.
Depot Stock & Plate Profiles
Get Sheets & Plates Quote
Connect directly with our flat steel specialists. Send your required plate thickness, cut dimensions, and grade specifications for immediate commercial pricing.
Sheets & Plates RFQ Requisition
Please indicate product form, dimensions, and cutting requirements.
